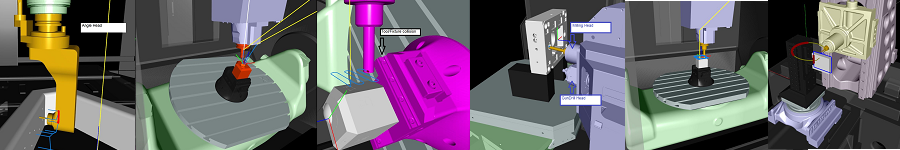

G5X-CNC Machine Simulation





download PDF











G5X-CNC Machine Simulation from GCode



Integrated with Mastercam

Works with any Mill post-processor (3X, 4X, 5X)

Reads native CNC code (Fanuc, Heidenhain, Siemens, Haas, )

Very accurate collision detection (0.02mm)

Machine types: H/H, T/T, H/T

Supports non-standard components:

- Angle Head

- GunDrill

- external 6th axis





Download G5X Simulation Viewer:

https://drive.google.com/drive/folders/1QQ1CPtglr4GOeJVUEGqJyviAHBbRyRK7?usp=sharing



To get the full version contact: comercial@grandesoft.pt
